| Quantity: 0 Pieces |
| Size: DN80 |
| Pressure: 1.0 MPa |
| Body Material: Cast Iron |
| Type: SG |
Manufactured in accordance to JIS F7400.
Flanges as per JIS B2220
Pressure: PN10 and PN16
Materials:
(1). Body: Ductile Iron / Cast Steel;
(2). Seat: Rubber;
(3). Disc: SUS/Bronze;
(4). Stem: SUS

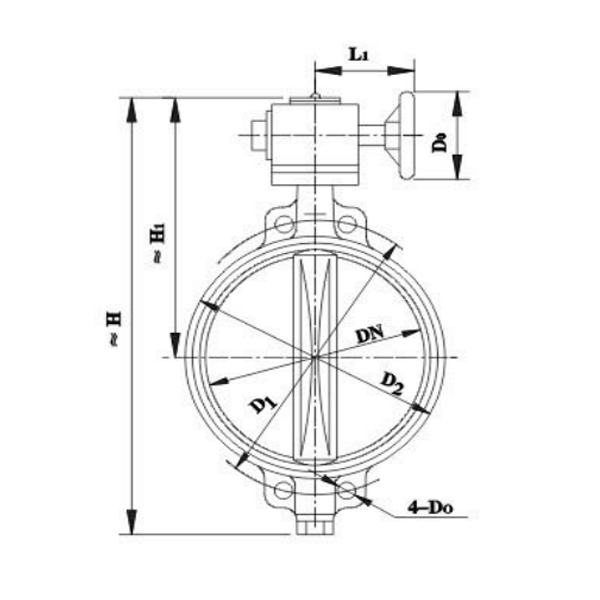

Dimensions
PN (MPa) | DN (mm) | H | H1 | L1 | Dₒ | L | D | D1 | D2 | n | Th. |
1.0 | 80 | 340 | 130 | 160 | 140 | 46 | 170 | 138 | 118 | 8 | 16 |
