| Quantity: 36 Pieces |
| Size: DN25 |
| Pressure: 0.1 MPa |
| Body Material: Cast Iron |
| Type: BS |
Available medium: Fresh water, Sea water, and Fuel oil
DN(mm): 25 ~ 100
PN(Mpa) 0.3 ~ 0.5
Materials of main Parts:
(1). Body: Cast Iron;
(2). Cover: Cast Iron;
(3). Disc: Cast Tin Bronze

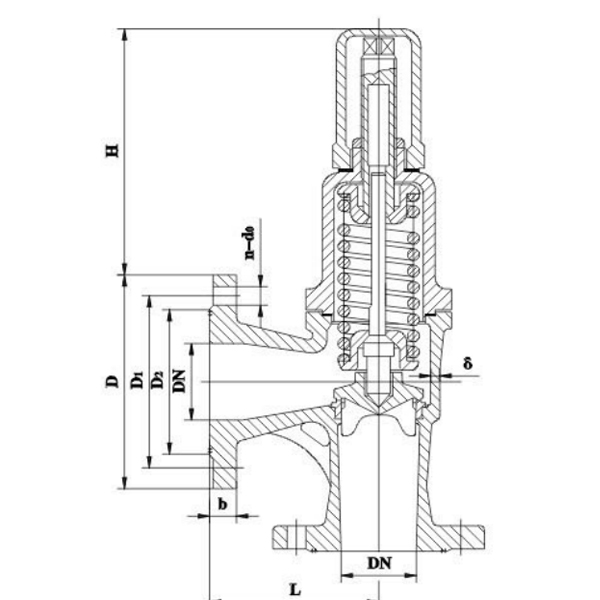

5. Dimensions
Dimensions
DN
| L
| H
| thickness | D | D1 | D2 | b | dₒ | n | Th. | kg |
25 | 174 | 80 | 7 | 105 | 73 | 56 | 14 | 13 | 4 | M12 | 5.53 |
