JIS F3060 125A  5K Angle Storm Valve
  • JIS F3060 125A  5K Angle Storm Valve
JIS F3060 125A  5K Angle Storm Valve

JIS F3060 125A 5K Angle Storm Valve

Quantity: 0 Pieces
Size: 125A
Pressure: 5K
Body Material: Bronze
Type: Angle
  1. The flanges shall conform to nominal pressure 5K

  2. Materials:

(1). Body: Cast Steel/Bronze;

(2). Cover: Cast Steel/Bronze;

(3). Valve Plate: Bronze;

(4). Arm: Bronze;

(5). Counterweight: Lead;

(6). Spindle Box: Bronze;

(7). Packing Gland Nut: Bronze;

(8).  Packing Gland: Bronze;

(9). Stem: Brass;

(10). Plug: Brass;

(11). Washer: Brass;

(12). Stud Bolt & Nut: Steel/Brass;

(13). Hexagon Bolt & Nut:Steel/Brass;

(14). Hexagon Bolt & Nut:Steel/Brass;

(15). Gasket: Non Asbestos;

(16). Gasket: Non Asbestos;

(17). Packing: Non Asbestos;

(18). Gasket: Non Asbestos;

(19). Gasket: Oil Resisting Rubber;

(20). Set Plate: Brass;

(21). Set Screw: Brass;

(22). Set Screw: Brass;

(23). Handle: Cast Iron;

(24). Hexagon Nut: Steel/Brass;

(25). Washer: Steel/Brass;

(26). Split Pin: Brass

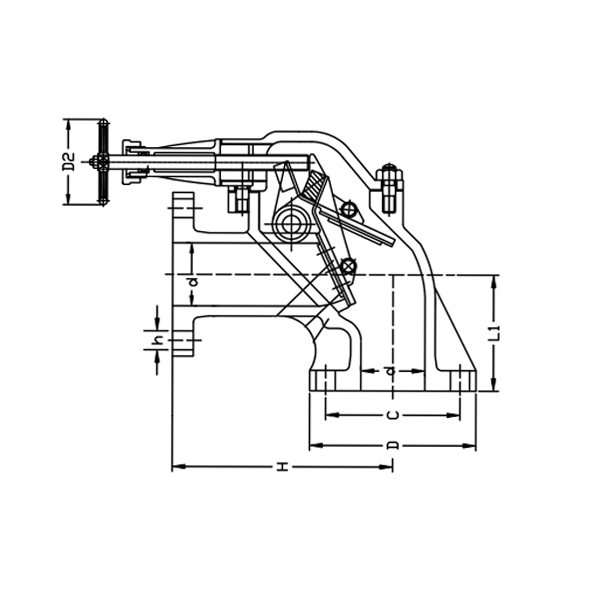

    3. Dimensions



Type

Size

L1

D

C

No.

h

t

H

D2/kg

F3060

5K

125

150

250

210

8

23

20

270

125/50


JIS F3060 125A  5K Angle Storm Valve .jpgJIS F3060 125A  5K Angle Storm Valve 1.jpg
