| Quantity: 1 Pieces |
| Size: 150A |
| Pressure: 10K |
| Body Material: Cast Iron |
| Type: Straight |
Manufactured in accordance to JIS F7400.
Flange as per JIS B2220 - 10K
Series: F7377 (SDNR)
Materials:
(1). Body: Cast Iron;
(2). Seat: Stainless Steel;
(3). Disc: Stainless Steel;
(4). Stem: Stainless Steel

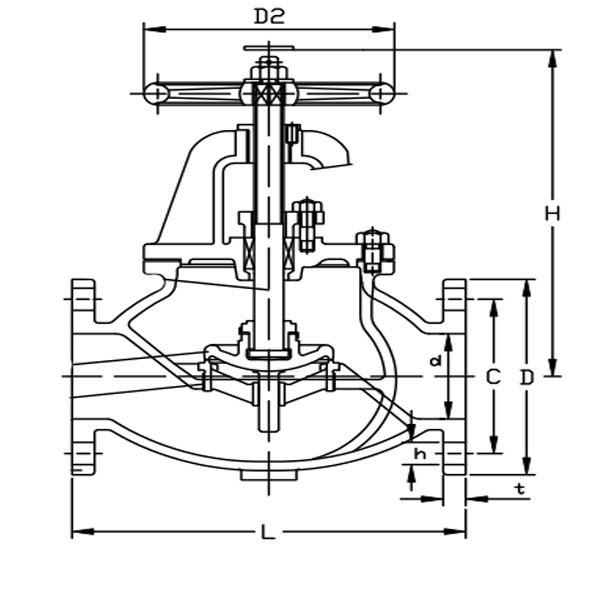

5. Dimensions
Size | L | D | C | No | h | t | H | D2 | kg |
150 | 500 | 305 | 305 | 12 | 25 | 28 | 510 | 355 | 123 |
