Dia.92mm Grade 3 Anchor Chain
Dia.92mm Grade 3 Anchor Chain

Dia.92mm Grade 3 Anchor Chain

Quantity: 0 pieces
Grade: grade 3
Material: CM690
Surface treatment: Bituminous paint
Availible cert.: CCS, ABS, BV, DNV, LR and other certificates.

Dia.92mm Grade 3 Anchor Chain

Dia.92mm Grade 3 Anchor Chain 1.jpg

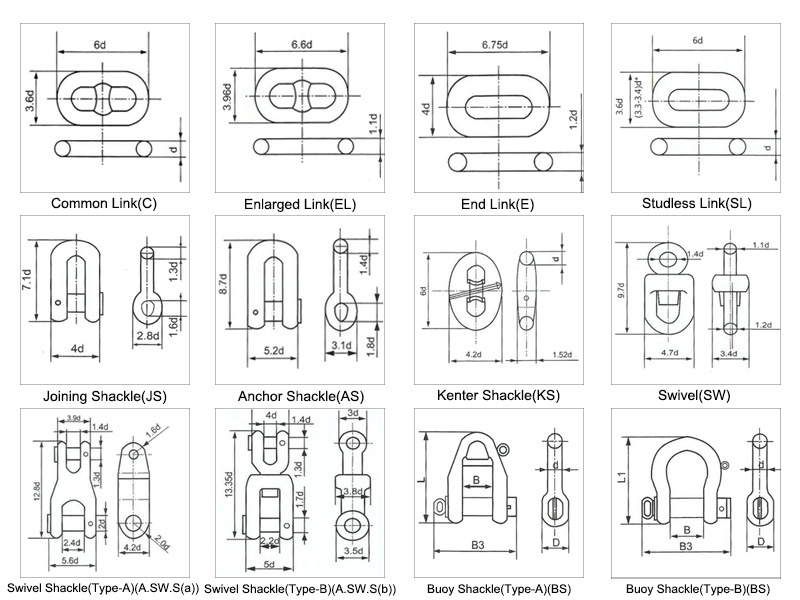

Drawings and Parameters of Dia.92mm Grade 3 Anchor Chain:

Dia.92mm Grade 3 Anchor Chain 3.jpg


Nominal

Chain Diameter

(mm)

Proof Test Load (KN)

Breaking Test Load(KN)

Approx. Mass (kg/ 27.5m)

AM3

Grade 3

AM3

Grade 3

92

4260

6080

5199

Picture of Dia.92mm Grade 3 Anchor Chain:

Dia.92mm Grade 3 Anchor Chain 4.jpg
