| Quantity: 0 pieces |
| Material: Cast Iron |
| Capacity Range: 10tonnes~150tonnes |
| Availible cert.: CCS, ABS, BV, DNV, LR and other certificates. |

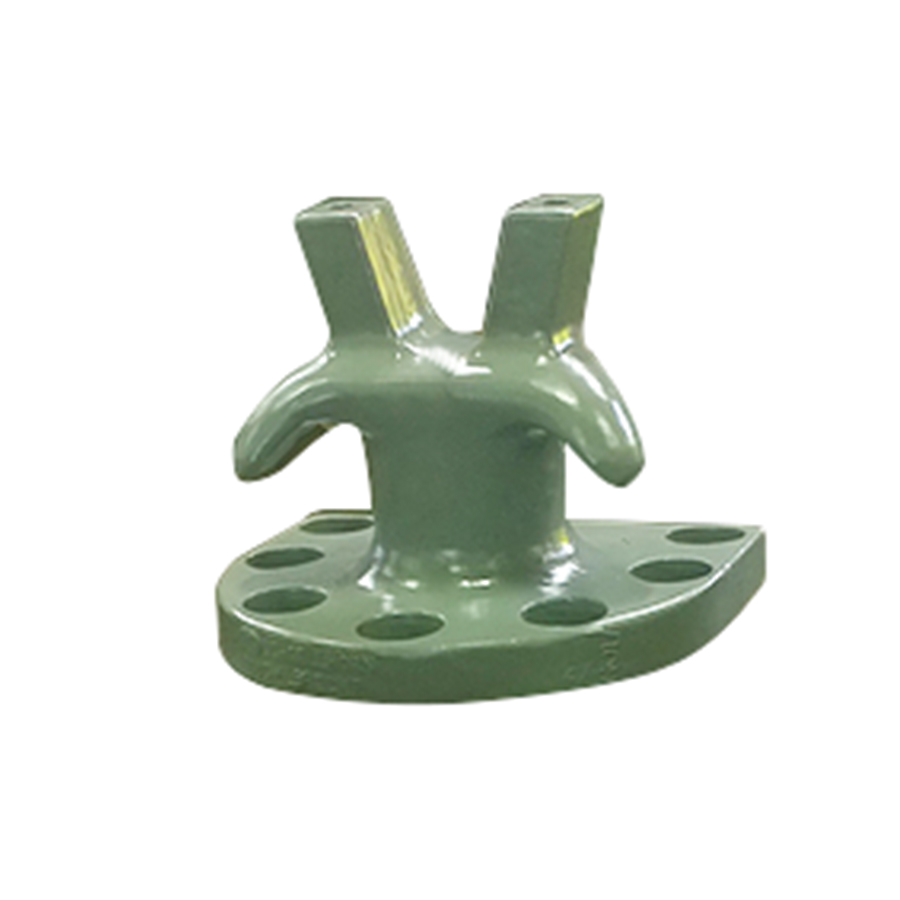

Staghorn Type Bollard
Introduction:
There are various types, shapes, bearing capacity and materials for marine bollards. As the name suggests, staghorn type bollard is similar in shape to staghorn. We can also provide other types of marine bollards, If you need customized products, we can also manufacture them according to your drawings or needs.
We can also provide many types of marine equipments. If you want more informations, please contact us by sending an email or make us a phone call.

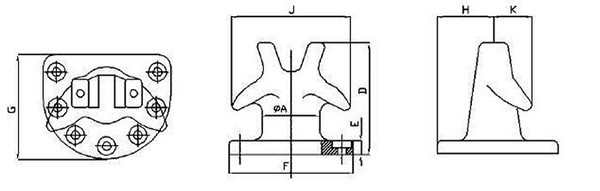

Drawings and Parameters of Staghorn Type Bollard:
Capacity (tonnes) | A | D | E | F | G | H | J | K | Bolt NO. |
10 | 166 | 352 | 55 | 350 | 305 | 102 | 382 | 115 | 5 |
15 | 178 | 400 | 65 | 400 | 350 | 130 | 420 | 127 | 5 |
20 | 203 | 467 | 70 | 485 | 405 | 165 | 410 | 165 | 5 |
30 | 254 | 530 | 75 | 610 | 570 | 265 | 505 | 185 | 5 |
40 | 300 | 617 | 75 | 610 | 610 | 305 | 60 | 210 | 5 |
50 | 300 | 598 | 85 | 762 | 660 | 280 | 560 | 230 | 5 |
60 | 300 | 604 | 70 | 762 | 660 | 280 | 560 | 230 | 6 |
75 | 355 | 742 | 95 | 850 | 725 | 305 | 760 | 240 | 7 |
100 | 360 | 774 | 115 | 965 | 840 | 356 | 760 | 240 | 7 |
150 | 430 | 850 | 115 | 1015 | 915 | 380 | 840 | 280 | 7 |
