JIS F7409-SDNR 40A Bronze Globe Valve

1.  The flanges shall conform to nominal pressure 16K of JIS B2210

2. JIS F7409 16K for nominal dia 65 shall be made Bolted Bonnet type

3. Materials:


(1). Bode: Bronze;

(2). Bonnet: Bronze/Brass;

(3). Disc: Bronze/Brass;

(4). Valve Disc Nut: Brass;

(5). Packing Gland: Brass;

(6). Gland Nut: Brass;

(7). Stem: Brass;

(8). Set Screw: Brass;

(9). Hendweel: Cast Iron;

(10). Hexagon Nut: Brass;

(11). Split Pin: Brass;

(12). Lock Plate: Brass;

(13). Disc Lock Washer: Brass;

(14). Packing: Non Asbestos;

(15). Washer: Steel;

(16). Indicator Plate: Brass;

(17). Indicator Piece: Brass

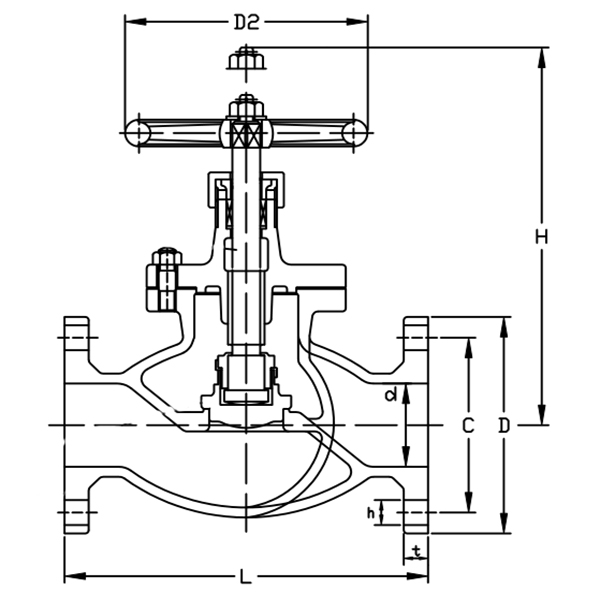

    4. Dimensions
