JIS F7354 Angle SDNR Valve
  • JIS F7354 Angle SDNR Valve
JIS F7354 Angle SDNR Valve

JIS F7354 Angle SDNR Valve

Quantity: 0 Pieces
Size: 100A
Pressure: 5K
Body Material: Cast Iron
Type: Angle



  1. The flanges shall conform to nominal pressure 5K of JIS B 2210

  2. The name plate shall be specified by purchaser as required

  3. Materials:

(1). Body: Cast Iron ;

(2). Bonnet:  Cast Iron ;

(3). Hand wheel:  Cast Iron ;

(4). Disc: Bronze/Stainless Steel;

(5). Valve Seat: Bronze/Stainless Steel;

(6). Disc Nut: Bronze/Stainless Steel;

(7). Screw Bonnet Bush: Bronze/Stainless Steel;

(8). Bonnet Bush: Bronze/Stainless Steel;

(9). Packing Gland: Bronze;

(10). Stem: Bronze/Stainless Steel;

(11). Stud Bolt: Steel;

(12). Stud Bolt: Steel;

(13). Hexagon Nut: Steel;

(14). Hexagon Nut: Steel;

(15). Hexagon Nut: Steel;

(16). Lock Pin: Steel;

(17). Split Pin: Brass;

(18). Disc Lock Washer: Brass;

(19). Packing: Non asbestos;

(20). Gasket: Non asbestos;

(21). Washer: Steel

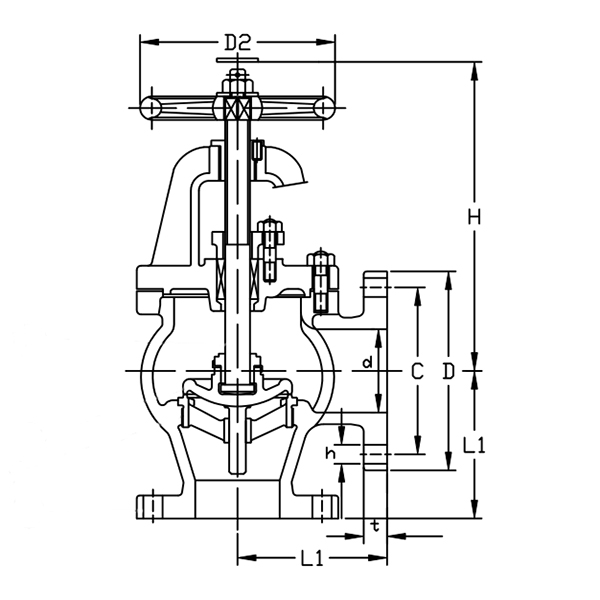

   4. Dimensions

Type

Size

L1

D

C

No.

h

t

H

D2

F7354

5K

100

150

200

165

8

19

20

310

224

JIS F7354 Angle SDNR Valve.jpgJIS F7354 Angle SDNR Valve.jpg
