JIS F3060 Angle Storm Valve

1. The flanges shall conform to nominal pressure 5K

2. Materials:

(1). Body: Cast Steel/Bronze;

(2). Cover: Cast Steel/Bronze;

(3). Valve Plate: Bronze;

(4). Arm: Bronze;

(5). Counterweight: Lead;

(6). Spindle Box: Bronze;

(7). Packing Gland Nut: Bronze;

(8).  Packing Gland: Bronze;

(9). Stem: Brass;

(10). Plug: Brass;

(11). Washer: Brass;

(12). Stud Bolt & Nut: Steel/Brass;

(13). Hexagon Bolt & Nut:Steel/Brass;

(14). Hexagon Bolt & Nut:Steel/Brass;

(15). Gasket: Non Asbestos;

(16). Gasket: Non Asbestos;

(17). Packing: Non Asbestos;

(18). Gasket: Non Asbestos;

(19). Gasket: Oil Resisting Rubber;

(20). Set Plate: Brass;

(21). Set Screw: Brass;

(22). Set Screw: Brass;

(23). Handle: Cast Iron;

(24). Hexagon Nut: Steel/Brass;

(25). Washer: Steel/Brass;

(26). Split Pin: Brass

    3. Dimensions

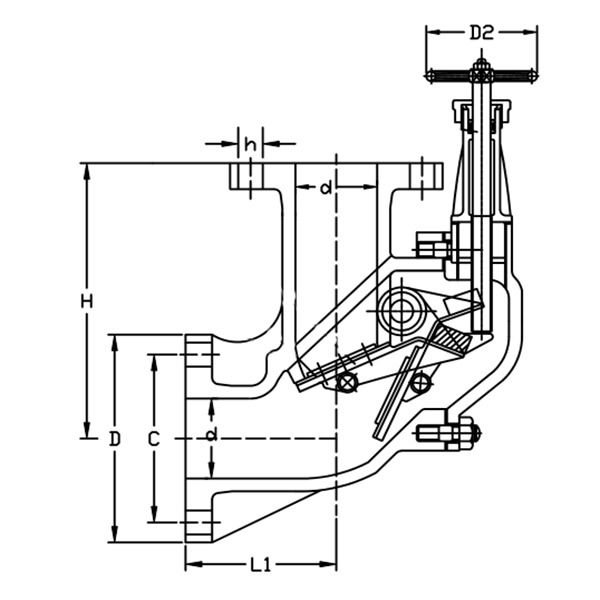

    4. Drawing
