| Quantity: 0 Pieces |
| Size: DN125 |
| Pressure: 0.6 MPa |
| Body Material: Cast Tin Bronze |
| Type: AS |
Applicable Madium: Sea water, Fresh water, Lubricanting oil, Fuel oil, t≤250℃ steam
Materials of Main Parts:
(1). Body: Cast Tin Bronze;
(2). Cover: Cast Tin Bronze;
(3). Disc: Cast Tin Bronze
3. Dimensions
PN (Mpa) | DN (mm) | L | H1 | H |
| D | D1 | D2 | dₒ | b | n | Th. | m | kg |
0.6 | 125 | 400 | 200 | 182 | 7 | 240 | 200 | 178 | 18 | 20 | 8 | M16 | 35 | 34.0 |

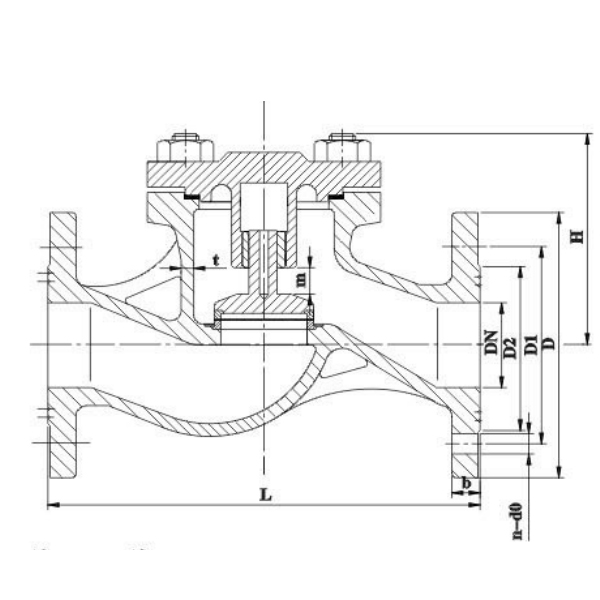

4. Drawing
