GBT5744-93 Marine quick-closing valves
  • GBT5744-93 Marine quick-closing valves
GBT5744-93 Marine quick-closing valves

GBT5744-93 Marine quick-closing valves

Quantity: 0 Pieces
Size: DN20
Pressure: 0.25 MPa
Body Material: Cast Steel
Type: AS,AQ,ASS,AQS
  1.  Applicable Medium:Lubricanting pil、Fuel oil and other oil

  2. Materials of Main Parts:

(1). Body: Cast Steel;

(2). Cover: Cast Steel;

(3). Cylinder Body: Cast Aluminum Bronze;

(4). Disc: Carbon Steel;

(5). Stem: Stainless Steel;

(6). Piston: Zine Brass

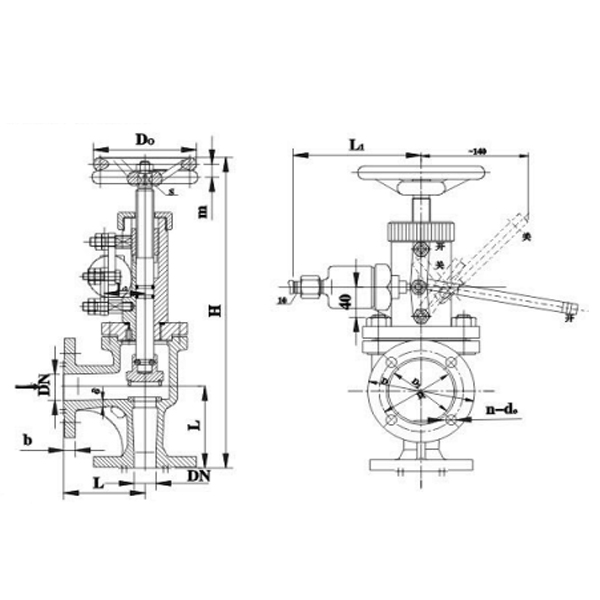

   3. Dimensions

DN

L

H

L1

L2

Thickness

D

D1

D2

b

d

n

Th.

D

S

m

V(cm³)

kg

20

150

240

143

44

   6

95

68

48

11

13

4

M12

80

8

7

27

5.8

GBT5744-93 Marine quick-closeing valves (2).jpgGBT5744-93 Marine quick-closeing valves.jpg
