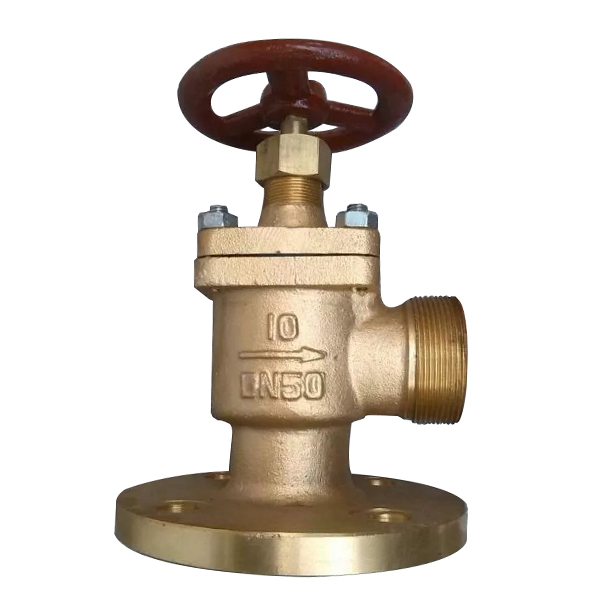

| Quantity: 0 Pieces |
| Size: DN 50 |
| Pressure: 1.0MPa |
| Body Material: Cast Tin Bronze |
| Type: BS |
Applicable Medium: Sea water, Fresh water
Materials of Main Parts:
(1). Body: Cast Tin Bronze;
(2). Cover: Cast Tin Bronze;
(3). Disc: Cast Tin Bronze;
(4). Stem: Aluminum Bronze;
(5). Seal Face: Cast Tin Bronze, Cast Silicon Brass
3. Dimensions
DN (mm) | L | L1 | H1 | L2 | H1 |
| D | D1 | D2 | b | dₒ | n | Th. | Dₒ | S | m | kg |
50 | 140 | 75 | 156 | 85 | 75 | 5 | 165 | 125 | 102 | 17 | 18 | 4 | M16 | 120 | 11 | 16 | 8.27 |

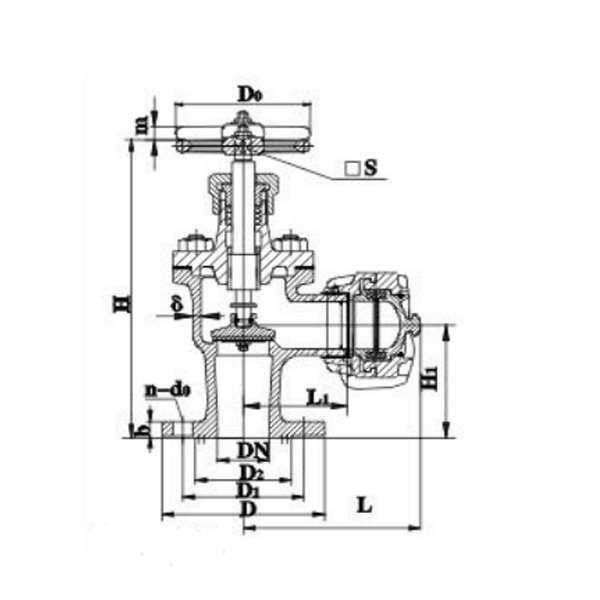

4. Drawing
