| Quantity: 20 Pcs |
| Material: forge steel |
| Color: galvanized and self-color |
| Surface: highly polished (as requirements) |
| Certificate: Third-party Inspection |
Detail:
Material: forge steel
Color: galvanized and self-color
Surface: highly polished (as requirements)
Technology: fabricated with modern forging methods, process with heat treatment and blasting
Size:6 mm-610 mm(as requirements)
Specification:

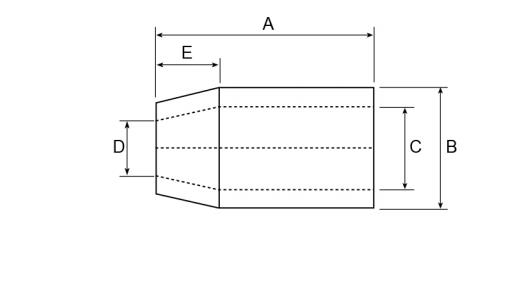

Drawing/sheet of flemish eye steel swaging sleeves
| DIMENSION (mm) |
|
| ||||
A(mm) | B(mm) | D(mm) | E(mm) | C(mm) | |||
1/4" | 25.4 | 16.8 | 7.88 | 7.12 | 11.9 | 14.5 | 2.27 |
1" | 102 | 58 | 29.5 | 28.6 | 43.7 | 49 | 89 |
2" | 216 | 111 | 57 | 57 | 92 | 90.4 | 514 |
3" | 305 | 152 | 82.5 | 86 | 127 | 126 | 1335 |
4" | 406 | 206 | 111 | 114 | 173 | 170 | 3087 |
6" | 610 | 318 | 165 | 171 | 259 | 252 | 12300 |
