DN1200 Dredge Discharge Hose
  • DN1200 Dredge Discharge Hose
DN1200 Dredge Discharge Hose

DN1200 Dredge Discharge Hose

Hose dia.: 1200mm
Length: 1000mm-3000mm
Working pressure: 1.5-2.5 Mpa
Burst pressure: 7.5 Mpa
Wall thickness: 70-73 mm

DN1200 Dredge Discharge Hose



Technical parameter

Hose dia.: 1200mm

Length: 1000mm-3000mm

Working pressure(Mpa):  1.5-2.5 Mpa

Burst pressure: 7.5 Mpa

Wall thickness: 70-73 mm

Working temperature: -20℃ to +50℃

DN

(mm)

Flange OD(mm)

Flange thickness(mm)

Bolt hole

Length(mm)

Working pressure(Mpa)

Burst pressure

(Mpa)

Wall thickness(mm)

P.C.D.

(mm)

No.

Hole dia.(mm)

1200±5

1515±3

50±2

1420±1

28

45±1

1000-3000

1.5-2.5

7.5

70-73

NOTE:The specifications for reference,the dredge discharge hoses can be customized according to client’s requests.

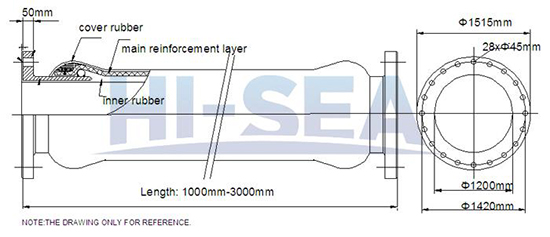

Drawing of DN1200 Dredge Discharge Hose

DN1200 discharge rubber hose Drawing.jpg
