| Quantity: 0 Pieces |
| Size: DN40 |
| Pressure: 0.1 MPa |
| Body Material: Carbon Steel |
| Type: A and AS |
Available medium: Fresh water, Sea water.
DN: 40 ~ 500
Materials of main Parts:
(1). Body: Carbon Steel;
(2). Cover: Carbon Steel;
(3). Precipitation trough: Carbon Steel;
(4). Mesh: Stainless Steel

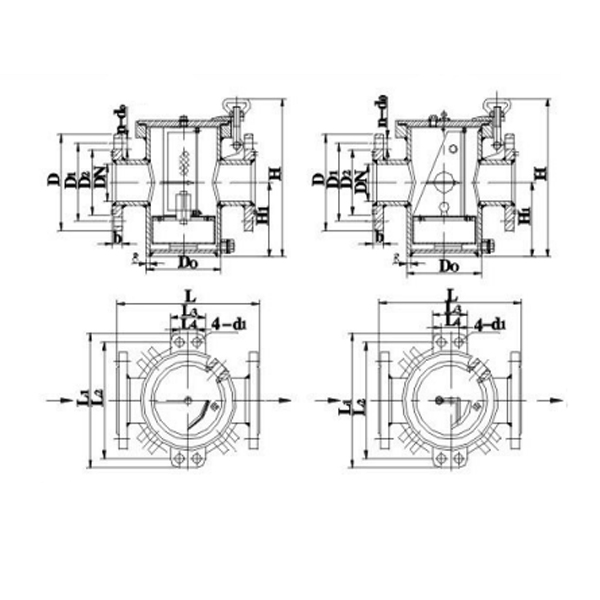

4. Dimensions
DN | L | H | H1 | Dₒ | t | D | D1 | dₒ | Th | D2 | b | n | kg |
40 | 270 | 255 | 92 | 133 | 5 | 125 | 93 | 15 | M14 | 74 | 15 | 6 | 12.9 |
