| Quantity: 0 Pieces |
| Size: DN300 |
| Pressure: 0.4 MPa |
| Body Material: Cast Tin Bronze |
| Type: Angle |
Available medium: Sea water.
Materials of Main Part:
(1). Body: Cast Tin Bronze;
(2). Cover: Cast Tin Bronze;
(3). Disc: Cast Tin Bronze;
(4). Cast Tin Bronze;
(5). Stem: Aluminum Bronze
3. Dimensions
DN
| L | H | D | D1 | D2 | dₒ | b | n | Th. | Handwheel | m | kg |
300 | 375 | 480 | 440 | 395 | 365 | 22 | 24 | 12 | M20 | 400 | 78 | 203 |

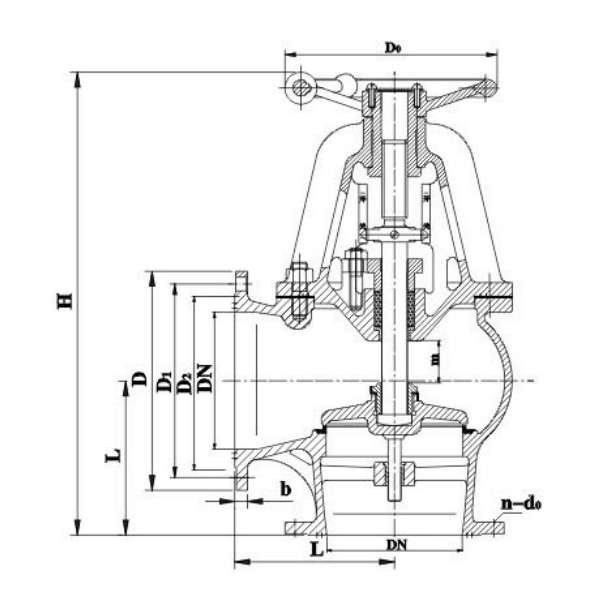

4. Drawing
