| Quantity: 0 Pieces |
| Size: DN50 |
| Pressure: 1.6MPa |
| Body Material: Bronze |
| Type: A |
Available medium: Sea water, Fresh water, Fuel oil, Lubricante oil, Steam of 205 degree and under.
DN(mm): 6~50
Materials of mai Parts
(1). Body: Cast Steel;
(2). Cover: Cast Steel;
(3). Disc: Cast Steel;
(4). Stem: Cast Steel;
(5). Hand Wheel: Cast Iron

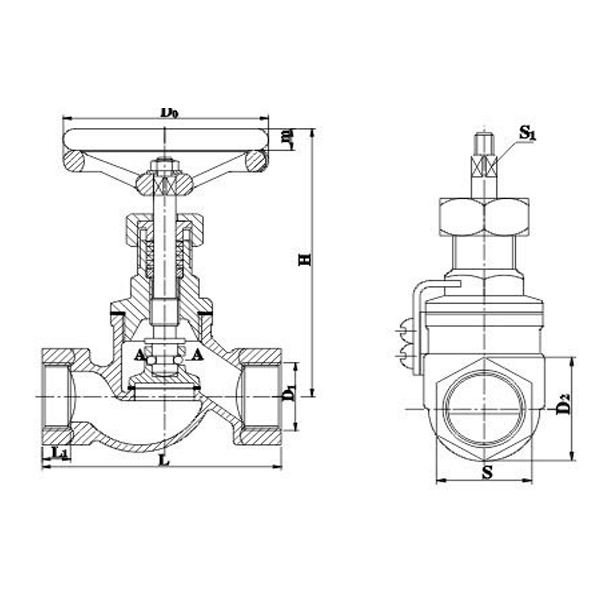

4. Dimensions
DN | L | H | H1 | D1 | S | L1 | Dₒ | S1 | m | kg |
50 | 180 | 175 | 80 | G2 | 70 | 34 | 120 | 11 | 15 | 4.37 |
969818.jpg "CBT306-1999 Marine interior whorl bronze stop valve1 (2)969818.jpg")
