| Quantity: 0 Pieces |
| Size: DN80 |
| Pressure: 0.6 MPa |
| Body Material: Cast Iron |
| Type: BS |
Available medium: Sea water, Fresh water, steam of 220℃ and under.
Materials of Main Parts:
(1). Body: Cast Iron;
(2). Cover: Cast Iron;
(3). Stem: Aluminum Bronze;
(4). Disc: Cast tin bronze
3. Dimensions
PN (Mpa) | DN (mm) | L | H |
| D | D1 | D2 | dₒ | b | n | Th. | kg |
0.6 | 80 | 348 | 155 | 9 | 200 | 160 | 133 | 18 | 8 | 8 | M16 | 39.3 |

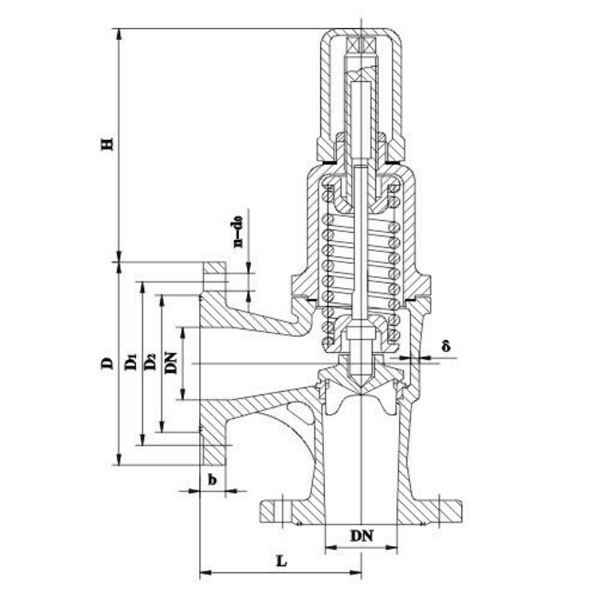

4. Drawing
