CB 3062-2011 Three Rollers Fairlead Type A

Type: three roller

Suitable wire rope dia: 14mm~44mm

Availible cert.: CCS, ABS, BV, DNV, LR and other certificates.

Contact Now

Download Product Catalog

Product Description

Send your message to this supplier

CB 3062-2011 Three Rollers Fairlead Type A

Introduction:

There are three types of fairleads in the CB/T 3062-2011 standard: Type A, Type B, and Type C, the number of rollers is 3, 4 and 5 respectively. Our products will be produced in strict accordance with the standards, and the products shipped out of the factory have undergone strict standard inspections.

We can also provide many types of marine equipments. If you want more informations about our products, please contact us by sending an email or make us a phone call.

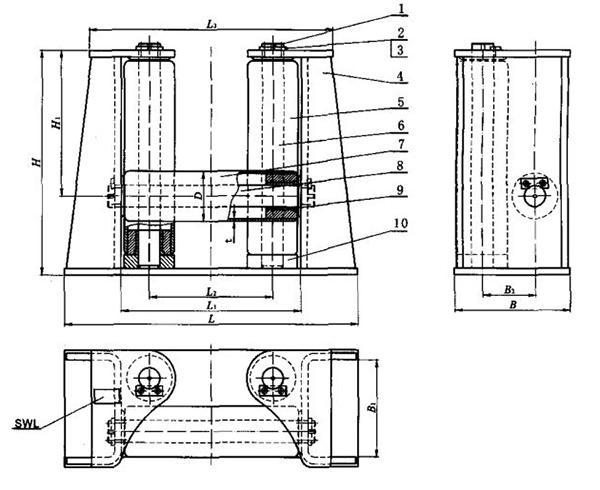

Drawings and Parameters of CB 3062-2011 Three Rollers Fairlead Type A:

Nominal Diameter	Steel wire rope Dia. (mm)	Nylon rope Dia. (mm)	SWL (kN)	B	B1	B2	D	H	H1	L	L1	L2	L3	t	Weight (kg)
100	14	36	54	238	194	108	102	508	330	644	416	300	544	10	112
120	16	40	70	280	232	128	121	552	360	728	456	320	608	12	169
140	18	45	89	304	250	138	140	606	405	776	480	330	646	14	227
150	20	70	110	346	288	158	152	670	435	880	540	370	730	16	328
160	22	80	133	370	308	168	168	710	470	940	580	400	780	18	388
180	26	85	186	417	345	190	194	770	510	1030	620	420	850	20	575
200	28	95	216	459	385	210	219	820	550	1136	686	460	936	22	722
230	32	100	282	521	445	240	245	910	605	1256	746	490	1026	25	966
260	36	100	357	590	500	270	273	1000	670	1430	850	560	1170	28	1422
320	44	100	533	714	620	330	325	1130	770	1690	990	640	1370	30	2122
