CB 3062-2011 Five Rollers Fairlead Type C

Standard: CB 3062-2011

Type: five roller

Suitable wire rope dia: 14mm~44mm

Availible cert.: CCS, ABS, BV, DNV, LR and other certificates.

Contact Now

Download Product Catalog

Product Description

Send your message to this supplier

CB 3062-2011 Five Rollers Fairlead Type C

Introduction:

There are three types of fairleads in the CB/T 3062-2011 standard: Type A, Type B, and Type C, the number of rollers is 3, 4 and 5 respectively. Our products will be produced in strict accordance with the standards, and the products shipped out of the factory have undergone strict standard inspections.

We can also provide many types of marine equipments. If you want more informations about our products, please contact us by sending an email or make us a phone call.

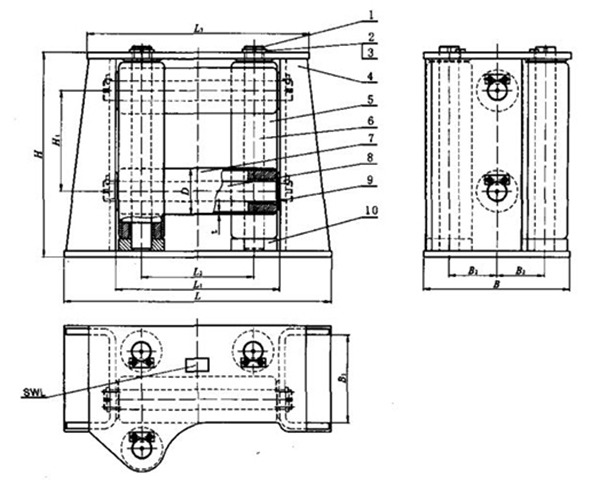

Drawings and Parameters of CB 3062-2011 Five Rollers Fairlead Type C:

Nominal Diameter (mm)	Steel Wire rope Dia. (mm)	Nylon rope Dia. (mm)	SWL (kN)	B	B1	B2	D	H	H1	L	L1	L2	L3	t	Weight (kg)
100	14	36	54	324	194	108	102	508	250	644	416	300	544	10	139
120	16	40	70	384	232	128	121	552	270	728	456	320	608	12	209
140	18	45	89	415	250	138	140	606	310	776	480	330	646	14	284
150	20	70	110	475	288	158	152	670	330	880	540	370	730	16	410
160	22	80	133	507	308	168	168	710	360	940	580	400	780	18	541
180	26	85	186	571	345	190	194	770	380	1030	620	420	850	20	723
200	28	95	216	632	385	210	219	820	410	1136	686	460	936	22	931
230	32	100	282	723	445	240	245	910	450	1256	746	490	1026	25	1253
260	36	100	357	815	500	270	273	1000	500	1430	850	560	1170	28	1852
320	44	100	533	997	620	330	325	1130	570	1690	990	640	1370	30	2877
