| Quantity: 0 pcs |
| Material: Steel |
| Type: Watertight |
| Clear size: 700*1500mm |
| Certificate: BV |
700*1500 Quick Action Pressure Holding Door
Quick action pressure holding door can endure the pressure of 0.1MPa. Handwheel make it easy to open. This door is used for watertight divisions with max water pressure of 0.10MPa.

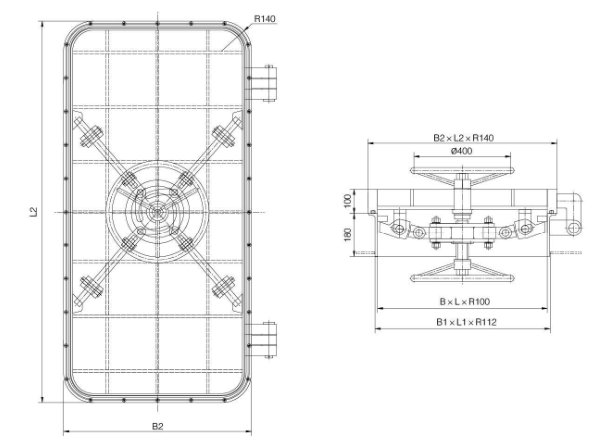

Drawing & Specifications
| nominal size L*B*R100 | cutout in steel wall L1*B1*R150 | external size L2*B2*R200 |
| 700*1500 | 724*1524 | 780*1580 |
Product Picture
