| Quantity: 1 set |
| Mooring load: 5kN |
| Nominal speed: 18m/min |
| Rope diameter: 9mm |
| Driving Type: Electric Driving |
5kN Mooring Capstan
Working load: 5kN
Nominal speed: ≥18m/min
Rope diameter: φ9mm
Reduction gears: BLY22-59
Motor: YZ112M-4-H
Power: 2.5kw
Speed: 1630r/min
Power supply: 220 V/60 Hz

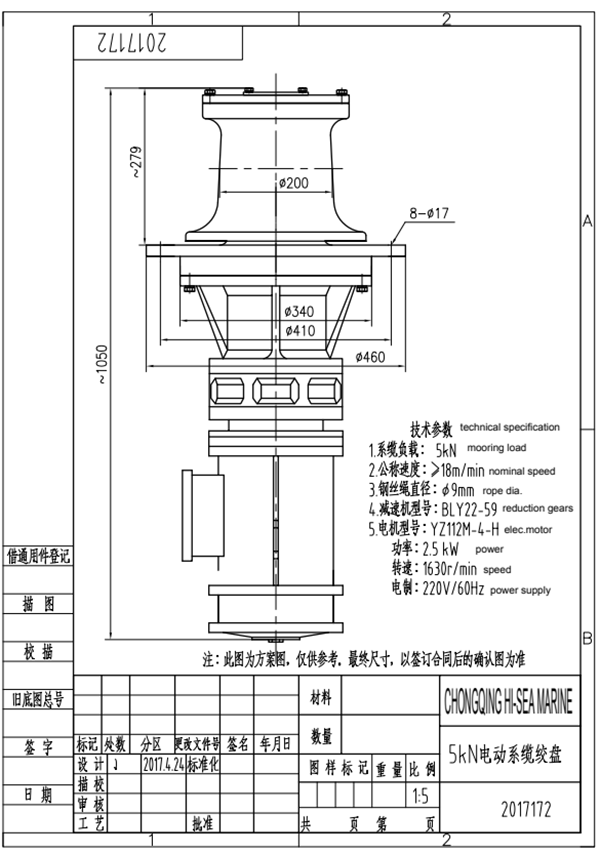

Drawing of 5kN Mooring Capstan
