| Quantity: 0 pcs |
| Material: Steel |
| Type: Weathertight |
| Clear size: 530*530mm |
| Certificate: ABS |
530*530 Steel Weathertight Hatch Cover
Steel weathertight hatch cover is single side opening and with butterfly clips. This kind of hatch cover has the advantage of easy to open, good weather tightness and have a long service life.

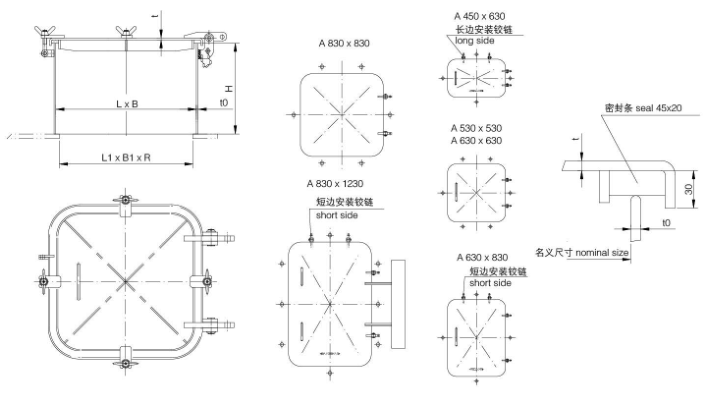

Drawing & Specifications
| nominal size L*B | clear size L1*B1*R1 | cover size L2*B2 | cover thickness t | hatch t0 | hatch H | butterfly clip dia. | qty | weight Kg |
| 530*530 | 500*500*100 | 588*588 | 4 | 4,6 | 100 | M16 | 4 | 24.2 |
Product Picture
