50kN Hydraulic Winch

50kN Hydraulic Winch

Quantity: 1 set
Working Load: 50 kN; Wire diameter: 18mm; Capacity: 20m
Drum: single drum
Brake: manual or hydraulic operated
Driving Type: Hydraulic

50kN Hydraulic Winch


Main Technical Requirements

  1. Working load: 50kN

  2. Hold load: 100kN

  3. Wire diameter: φ18mm

  4. Capacity: 20m

  5. Speed: ≥12m/min

  6. E-motor

        Model: Y180L-4-H

        Power: 22 KW

        Speed: 1470r/min

  7. Hydraulic

        Displacement: 1215ml/r

        Rated torque: 4022Nm

  8. System working pressure: 16Mpa

  9. Flow rate: 65L/min

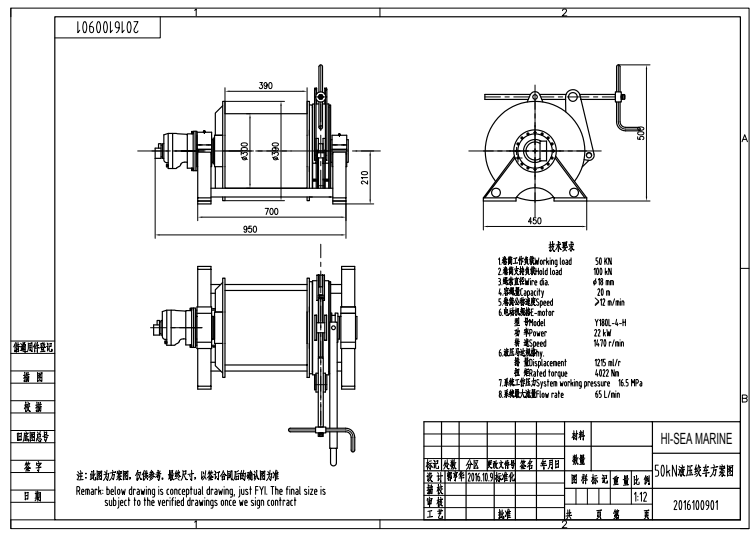

Drawing of 50kN Hydraulic Winch

50kN Hydraulic Winch.png
