| Quantity: 0 pcs |
| Material: Steel |
| Type: Openable |
| Clear size: 500*710mm |
| Certificate: LR |
500*710 Rectangular Opening Window
Rectangular Opening Window is a kind of rectangular window that is suitable for superstucture above freeboard deck and deck house.

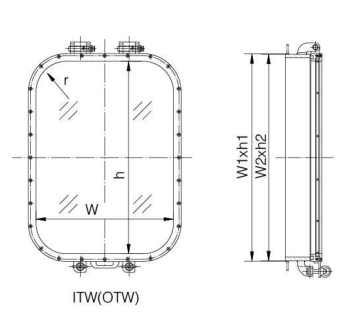

Drawing & Specifications
| nominal size | cutout in steel wall | size of frame | opening | |||
| w*h | r | w1*h1 | r1 | w2*h2 | w3*h3 | |
| 500*710 | 100 | 552*762 | 126 | 548*758 | 630*840 | ITW |

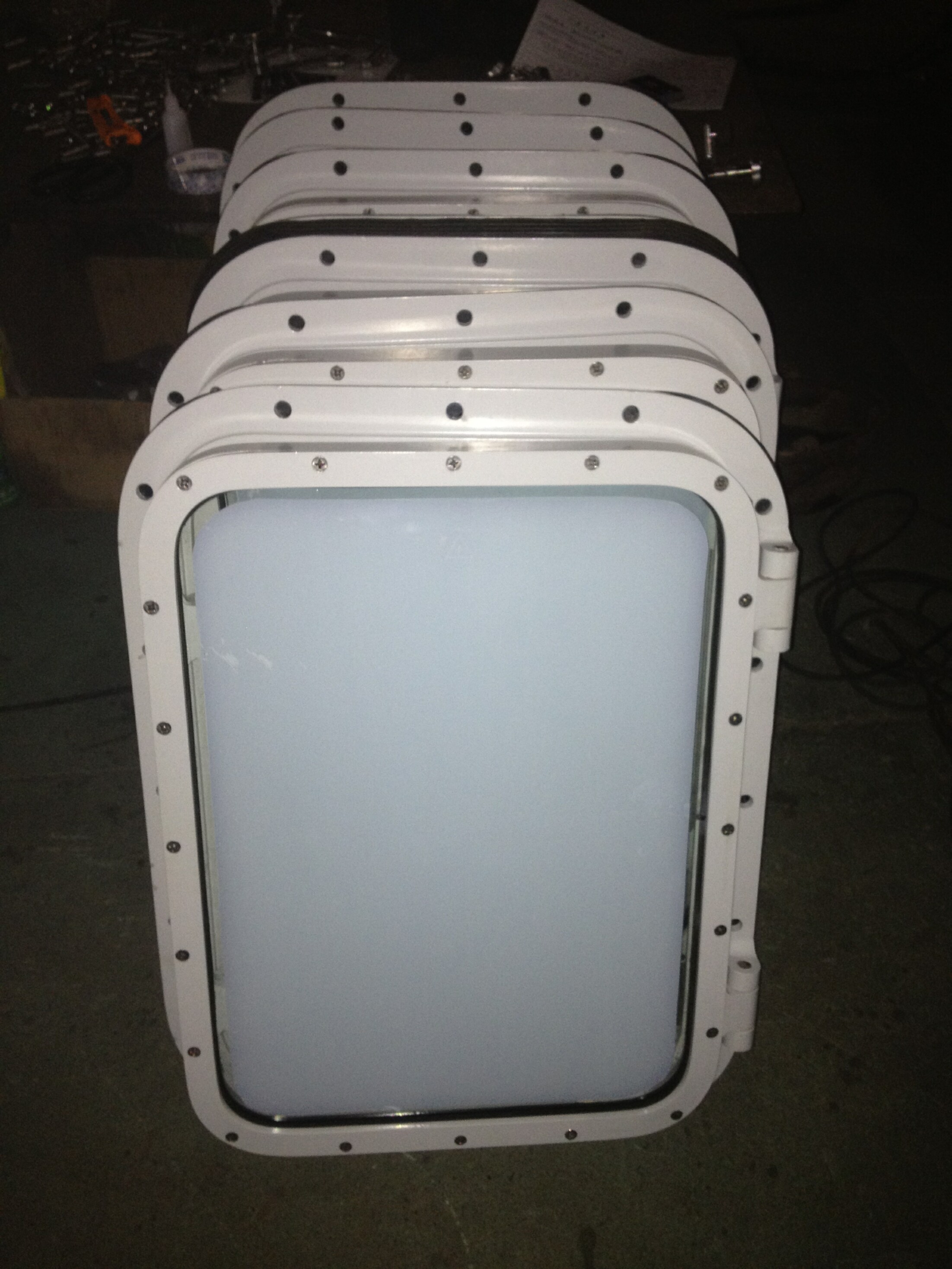

Profuct Picture
