| Quantity: 0 pcs |
| Material: Aluminum |
| Type: Soundproof |
| Clear size: 500*710mm |
| Certificate: CCS |
500*710 Aluminum Soundproof Hollow Window
Aluminum soundproof hollow window is used for cabin rooms which need soundproof, heat insulation and keep temperature.

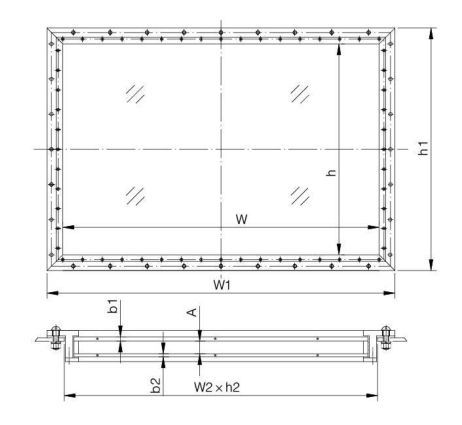

Drawing & Specifications
| clear size W*h | outline size W1*h1 | cutout in steel wall W2*h2 | glass thickness b1 | hollow | glass thickness b2 | soundproof lay TL(dB) | bolt | weight Kg | |
| qty | diameter | ||||||||
| 500*710 | 620*830 | 552*762 | 6 | 9 | 6 | 31.8 | 22 | M12 | 25.3 |

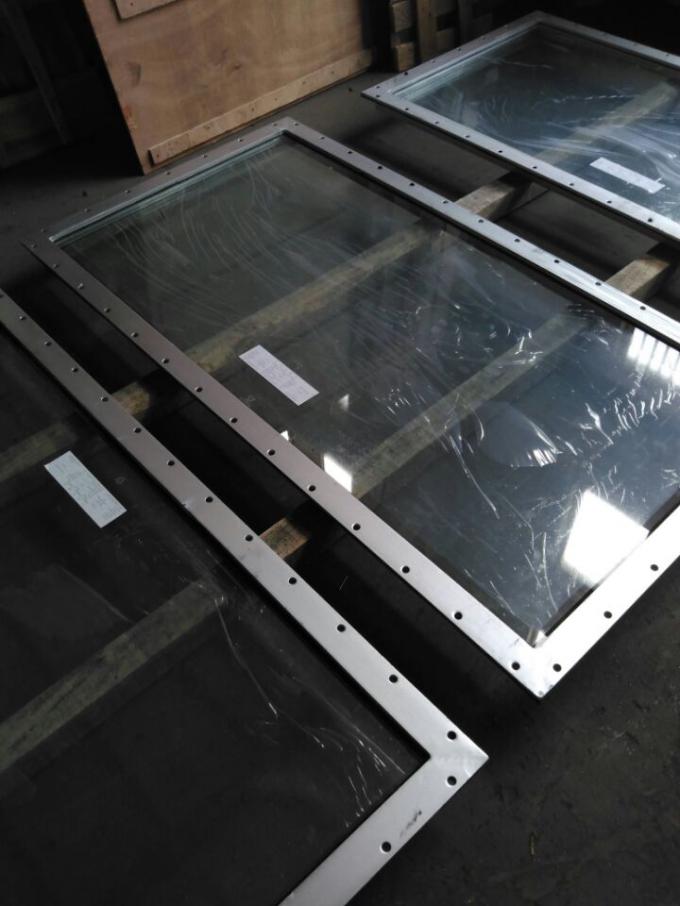

Product Picture
