17.5 mm Electric Single Gypsy Windlass

17.5 mm Electric Single Gypsy Windlass

Technical Parameters

1. Chain diameter: φ17.5 mm

2. Working load: 13.01 kN

3. Over load: 19.5 kN

4. Support load: 80.6 kN

5. Anchor speed: ≥ 9 m/min

6. The depth of anchor: ≤ 82.5 m

7. Warping head: Single warping head

8. Gypsy wheel: Single gypsy wheel

9.Electric Motor:

            Model: JZ2-H23-4/12

            Power: 4.3/1.7 kW

            Speed: 1350/410 r/min

            Duty: 415V/50HZ

            Protection grade: IP56

            Insulation grade: F

Drawing of 17.5 mm Electric Single Gypsy Windlass

Testing Images of 17.5 mmElectric Single Gypsy Windlass

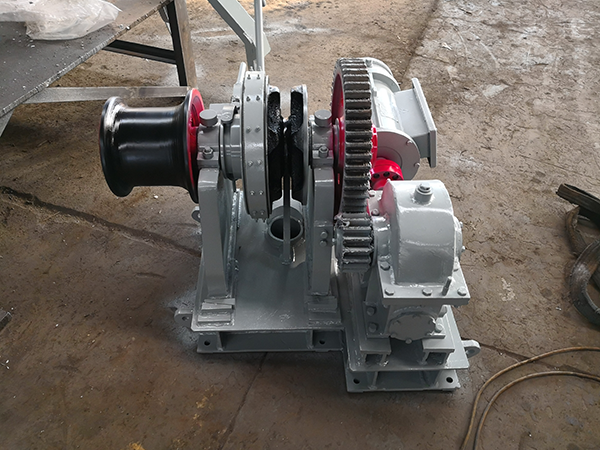

Finished Images of 17.5 mmElectric Single Gypsy Windlass
