120kN17m Hydraulic Telescopic Crane

120kN17m Hydraulic Telescopic Crane

Specifications

1. Safety working load: 80kN

2. Hoisting height: 30m

3. Hoisting speed: 15m/min

4. Working radius: 2.4-10m/4.2-17m

5. Slewing speed: 0.8r/min

6. Slewing angle: 360°

7. Luffing Time: 60s

8. Driving Type: Hydraulic

9. Motor

           Model: Y225M-4-H

           Power: 45kW

           Power source (/duty): AC380V/50Hz

           Protection type: IP44

           Insulation type: F

10. Design condition

           Heel: ＜5°

           Trim: ＜2°

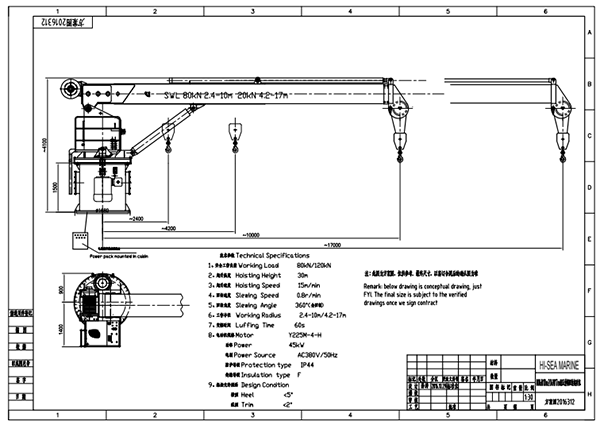

Drawing of 120kN17m Hydraulic Telescopic Crane
