| Quantity: 0 pcs |
| Wall Material: Steel and Rock Wool |
| Fire-resistant level: B15 |
| Wall Panel Thickness: 50mm |
| Certificate: BV |

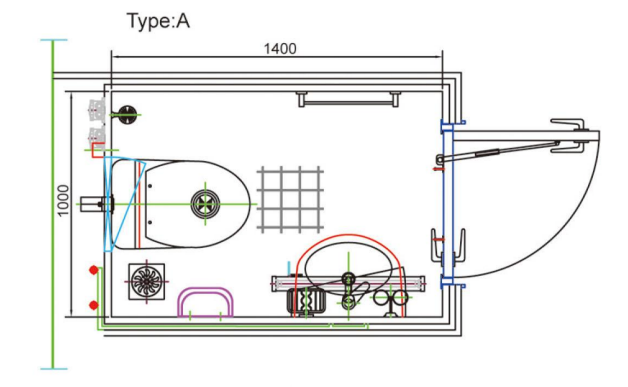

Type A Wet Unit System
Technical Specifications
| Overall dimensions | Base 1000*1400mm Height 2200mm |
| Base material | Galvanized steel |
| Ceiling material | steel foil/rock wool |
| Wall material | Sandwich type panel steel foil rock wool |
| Wall panel thickness | 50mm |
| Wall panel steel foil thickness | 7mm |
| Wall finishing | PVC/PVC |
| Rock wool density | 140Kg/m³ |
| Door clear opening | 530*1850mm |
| air gap | 15mm |
| Door frame shape | Z shaped |
| Hinges | 2+1 with spring |
| Frame finishing | stainless steel AISI 304 SB |
| Colors | To be defined according to Lampre color list |
